Setting up the shinydocs-jobs index

What is the shinydocs-jobs index?

An index called shinydocs-jobs can be created and used to log data by enabling the --use-shinydocs-jobs option during the following Cognitive Toolkit operations:

Enabling the --use-shinydocs-jobs option prompts the Cognitive Toolkit to send logging data to the shinydocs-jobs index during an operation. This will help you track current crawl activities, gather metrics and visualize errors, such as access and text extraction errors.

Visualizations & Dashboard

See: Shinydocs Jobs Visualizations & Dashboard

Key fields in the shinydocs-jobs index

Once this feature is enabled, there are key fields you should be aware of and their purpose. There are two types of entries in this index:

Crawl operations and metrics

Contains information about the crawl operations and metrics from completed crawl operations. There are more fields available, these are some of the key fields to know about:

Errors

Contains errors encountered while crawling, hashing, text extracting, etc. There are more fields available, these are some of the key fields to know about:

Configure Cognitive Toolkit to log to the index

With logging to the index enabled, the Cognitive Toolkit will attempt to update the shinydocs-jobs index with log entries as well as the log file. This can be helpful in visualizing current crawl activities, gathering metrics, and visualizing errors (access errors, errors in text extraction, etc.). If the connection between the Cognitive Toolkit and the Index breaks or Cognitive Toolkit is terminated unexpectedly, it will be unable to log to the index.

1. In the Cognitive Toolkit directory, which contains CognitiveToolkit.exe, open CognitiveToolkit.exe.config in a notepad-like editor

2. On Line 20, uncomment by removing the leading

3. Set the value to the URL and port of your Analytics Engine (index) endpoint, replacing http://localhost:9200

4. Save the file

Set up the index pattern

Once your first crawl has started, a new index will be created called shinydocs-jobs. To set up the index pattern in the Visualizer:

1. In the Visualizer, click Management

2. Select Index Patterns

3. Select Create index pattern

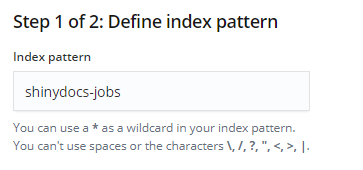

4. In the field Index pattern, enter shinydocs-jobs



5. Select Next

6. In the Time Filter field name drop-down, select “I don’t want to use the Time Filter”

7. Select Create index pattern

8. Wait for the index pattern to be created (less than 1 minute)

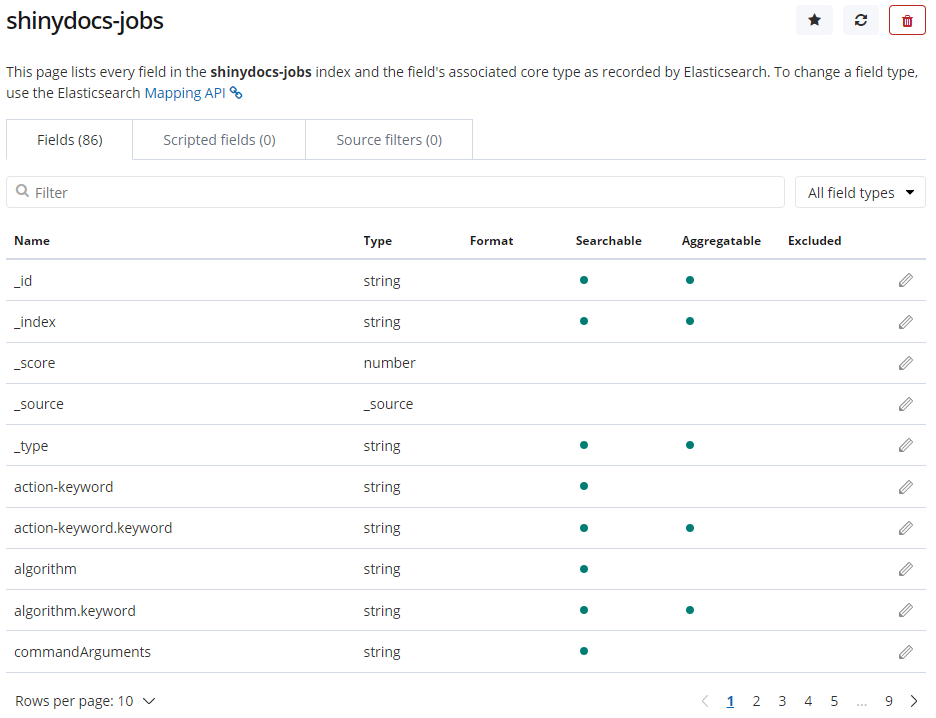

9. Once created, you will see a list of fields in your index pattern



10. In the Filter search bar, enter duration, and select the pencil (edit) button

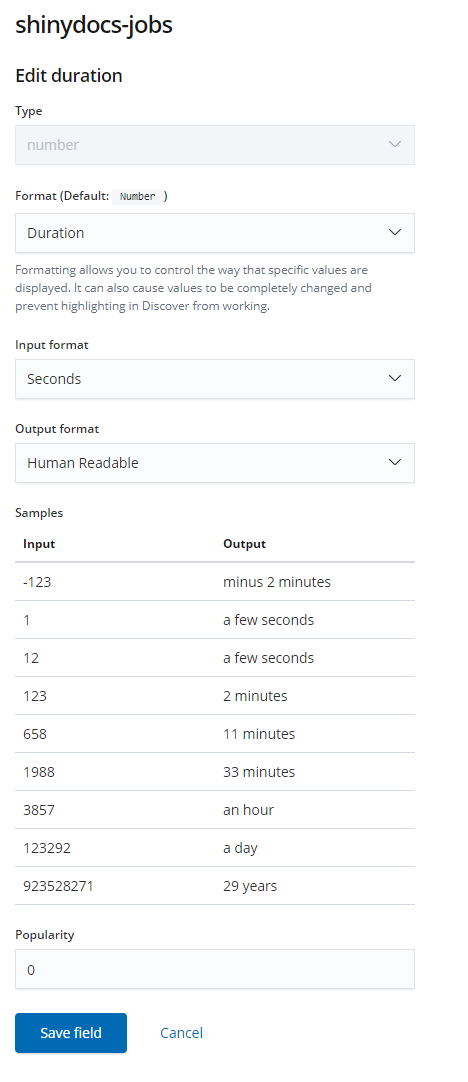

11. In the Format drop-down, select Duration

12. The Input format should be Seconds and the Output format should be Human Readable






13. Select Save field, all done!

Removing tasks that did not complete

Occasionally, there will be tasks that do not complete fully and therefore remain in the index incomplete. This can be caused by:

• System shutting down while process is running

• Application crash

• Terminating the process before completing

• Connection to the index breaks

To remove these items from the index you will need to use the Cognitive Toolkit or the Visualizer’s Dev Tools section. You will need the Task IDs (indexed as _id) of the entries to remove them (example ID: 5f0d242f-eafe-487d-982c-9250bbed4ecf). Either method will require a query to tell the index what to delete. You can use this query for either method:

Remove ID query

Replace <_id_here> with the ID(s) you want to remove

{ "query": { "ids": { "values": [ "<_id_here>" ] } } }

Remove_ID_query.json

Cognitive Toolkit Method

Replace http:// with your index URL and port & with the path to the Remove ID query

CognitiveToolkit.exe RemoveItems --index-name shinydocs-jobs --index-server-url http://

        --query




Visualizer Method

Navigate to Dev Tools in the left sidebar menu.

Replace <_id_here> with the ID(s) you want to remove. Then run the command:

POST shinydocs-jobs/_delete_by_query { "query": { "ids": { "values": [ "<_id_here>" ] } } }

The output after completion will look like this:

{ "took" : 81, "timed_out" : false, "total" : 1, "deleted" : 1, "batches" : 1, "version_conflicts" : 0, "noops" : 0, "retries" : { "bulk" : 0, "search" : 0 }, "throttled_millis" : 0, "requests_per_second" : -1.0, "throttled_until_millis" : 0, "failures" : [ ] }

"deleted": reflects the number of deleted items
