Crawling Box for Metadata
Just like the https://enterprisefile.atlassian.net/wiki/x/LACSMQ. The most efficient and effective data management strategy begins with data discovery. The Shinydocs Cognitive Analysis Toolkit allows you to perform the same Initial Discovery with cloud-based file share such as Box. Extracting metadata, all this business-critical information is then stored within a Shinydocs Index.
Crawl Your Data
Before you begin
Ensure that the Shinydocs Cognitive Analysis Toolkit has been installed and activated. If not, refer to thehttps://enterprisefile.atlassian.net/wiki/x/eYBuNw for installation instructions. Refer to https://enterprisefile.atlassian.net/wiki/x/LoR7Ng to activate your license.
Setup Box to work with the Cognitive Toolkit. Here are the instructions https://enterprisefile.atlassian.net/wiki/spaces/SHINY/pages/edit-v2/1022132389?draftShareId=81acdf14-22aa-42b6-9bb6-97cf4563a829&atlOrigin=eyJpIjoiY2Y4MDkyZDA1Y2MxNDQ4ZTk2NzZlZTM4MGJiM2NhODgiLCJwIjoiYyJ9 if you have not done so already
DO NOTS:
Crawling with server Alias canonical name (CNAME)
Crawling with an IP instead of a FQN
DO’s:
Crawl pointing to a FQN of a file share (fully qualified domain name)
Step by step:
Locate your Public Key that you have generated/downloaded while setting up box
This Public Key will be used within the command under -cfg within the next steps
Open a Windows command prompt as Administrator.
Change directory (cd) to where you extracted the shinydocs-cognitive-toolkit-yyyy-mm-dd.zip file
Run the command for a file share metadata crawl: CognitiveToolkit.exe CrawlBox -cfg
-u -i
Example of a command to perform a crawl of the root folder of box and to store the metadata in the Shinydocs Index, called crawlboxindex.

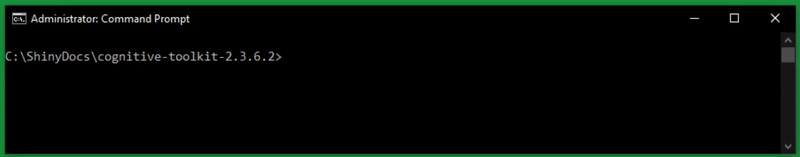

When the DOS > prompt is displayed, your crawl is complete. The metadata information is recorded in the Shinydocs Index.
Visualize Your Data
Before you begin, ensure that the Shinydocs Indexer/Visualizer has been installed. If not, refer to the https://enterprisefile.atlassian.net/wiki/x/eYBuNw instructions.
In a Web Browser (Chrome is recommended), enter the address for where Shinydocs Analytics has been installed. This is typically

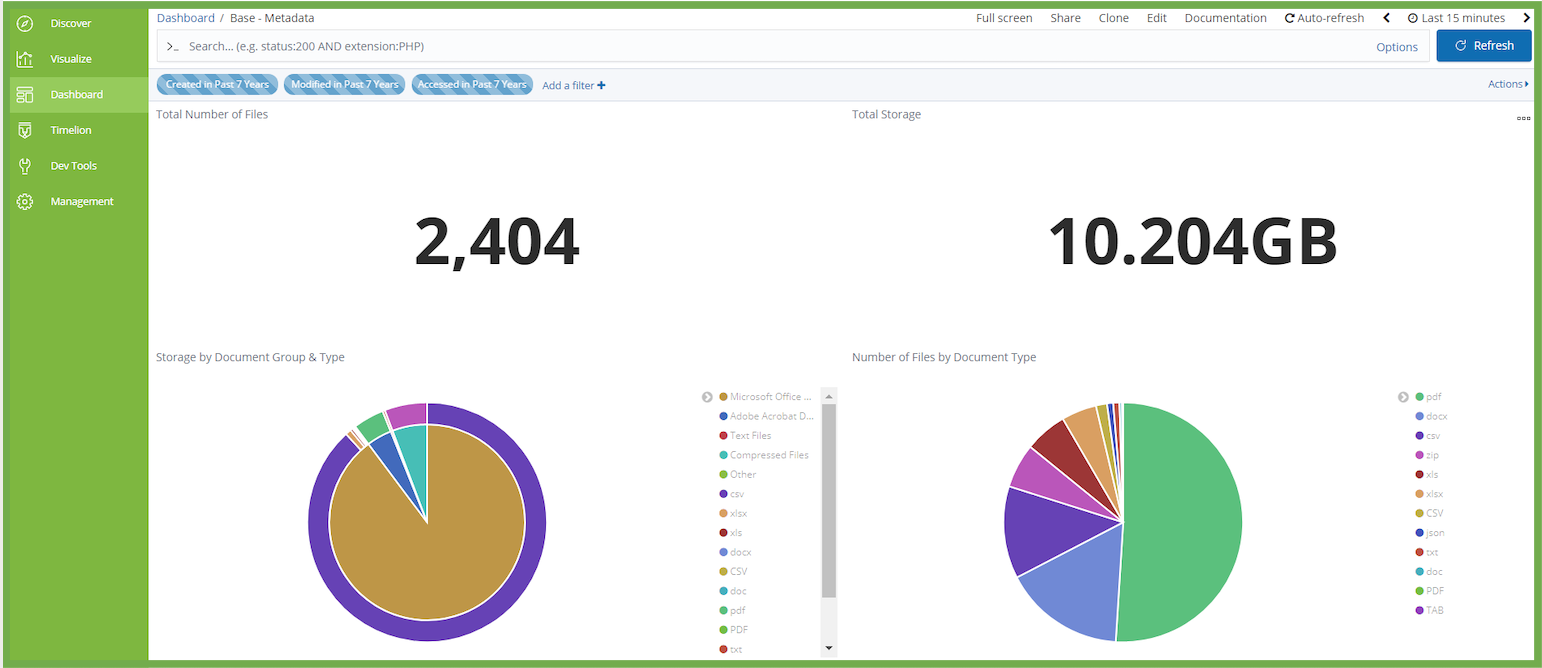

:5601. If you are running the tool locally, use "localhost:5601". From the Dashboard menu, open the basic dashboard for displaying metadata information: Base - Metadata
On this dashboard you will see a number of visualizations, each of which are based on a query of the underlying Shinydocs Index.
The visualizations on this Dashboard include the following:
Total Number of Files
Total Storage
Storage by Document Group & Type
Number of Files by Document Type
Number of Files by Created Date
Number of Files by Last Modified Date
Number of Files by Last Accessed Date
File Listing by File Size
File Listing by Name
Customize Your Data
Filters can easily be applied by the "Add a filter +" link near the top of the page.

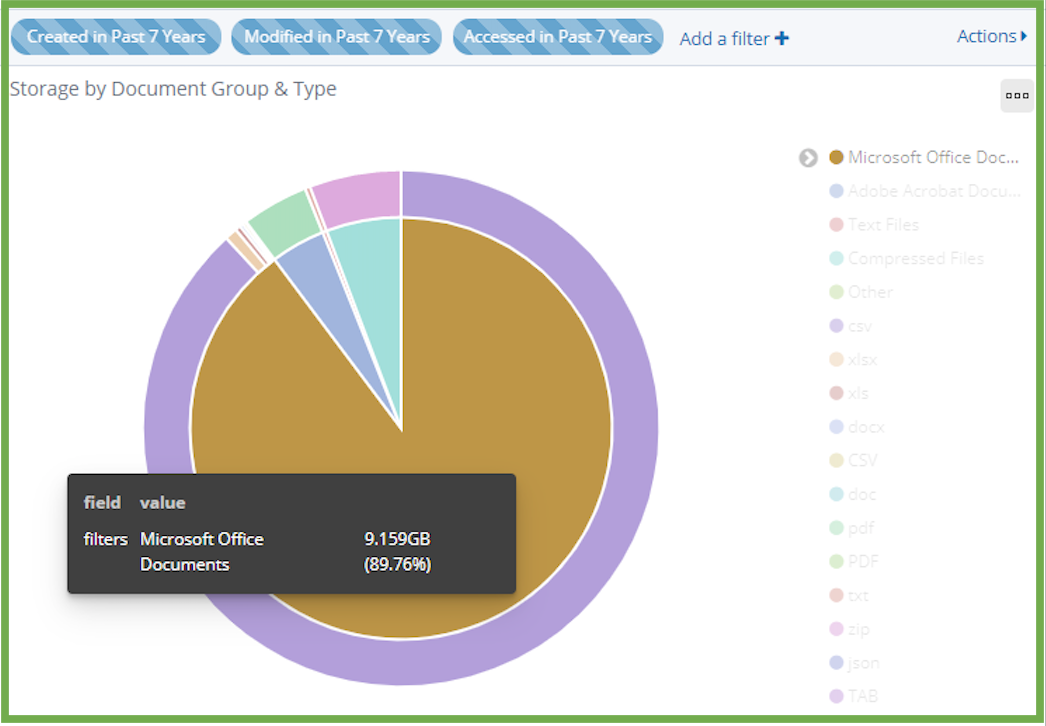

Alternatively, click on an item to display information related only to that item. For example, find the "Storage by Document Group & Type" visualization. Hovering over various parts of the visualization, will display the filter that will be applied by clicking on that particular section.

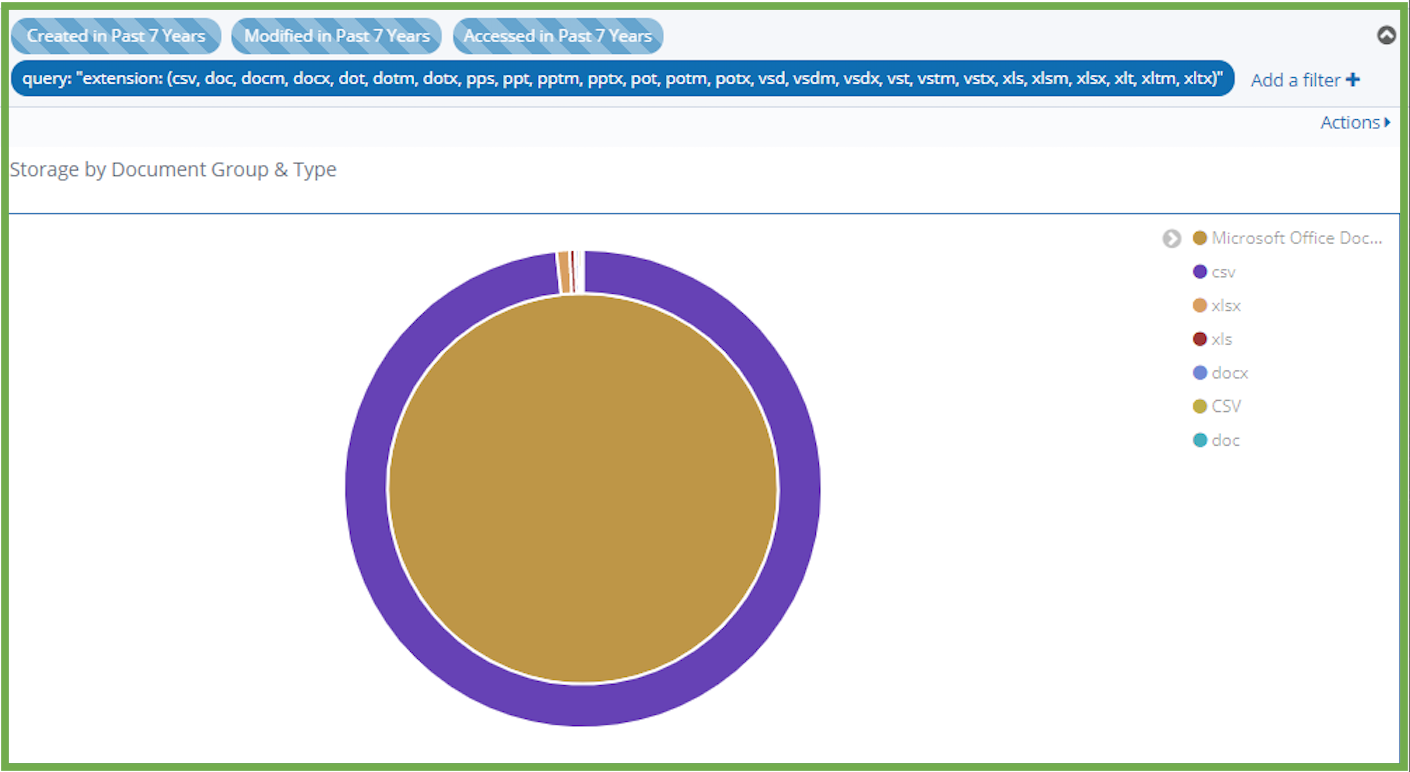

To apply the filter that will display only Microsoft Office Documents, click on the "Microsoft Office Documents" part of the pie chart (assuming some were crawled).

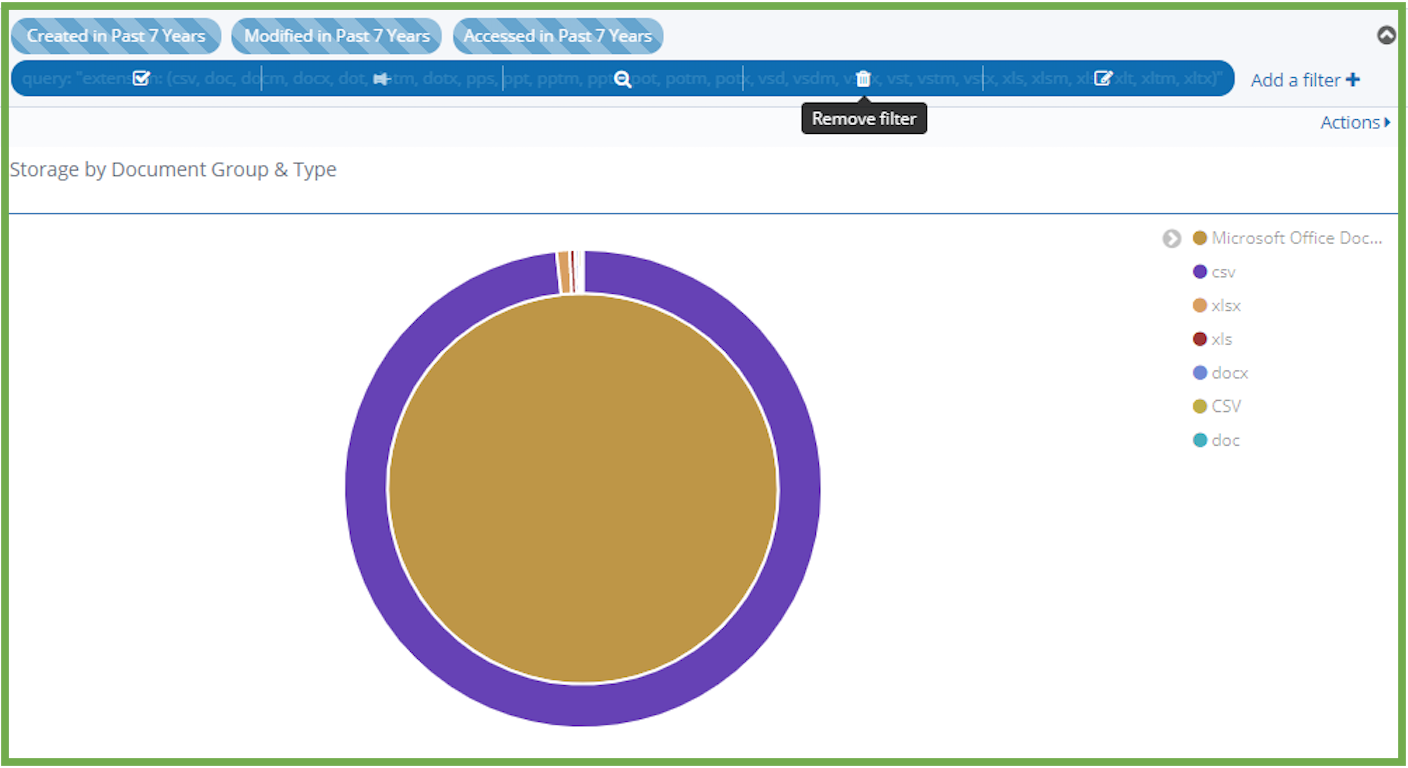

Once a filter has been applied, it can be removed by clicking the "Remove filter" icon near the top of the page.
Preset Filters
It is a good rule of thumb to keep business documents and financial records for a period of 7 years in compliance with the many business standards. For that reason, we’ve created 3 filters for displaying documents that were either created, modified or accessed in the past 7 years.

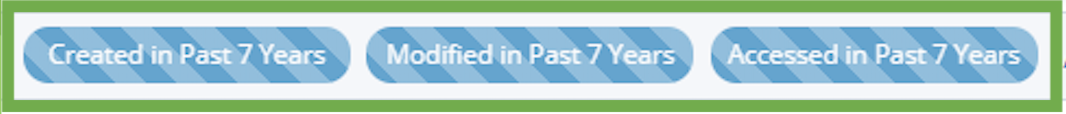

You will find these filters are easily accessible at the top of most Dashboards. The filters remain inactive (as indicated by the background striping) until manually enabled.

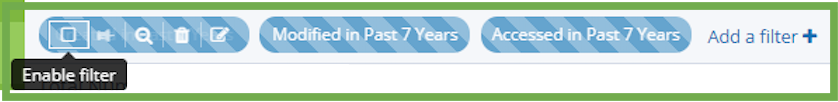

To enable a filter, use the cursor to hover over it. For example, hover over the Created in Past 7 years filter. Click Enable filter.
When enabled, the filter background will be solid and your dashboard will only display analytics for data created in the past 7 years.

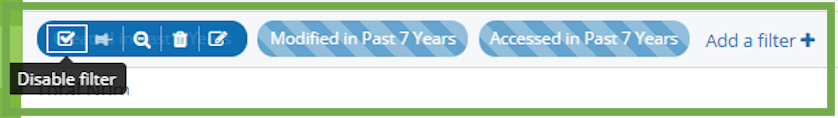

To disable the filter and return it to an inactive state on the dashboard, use the cursor to hover over the filter. Click Disable filter.

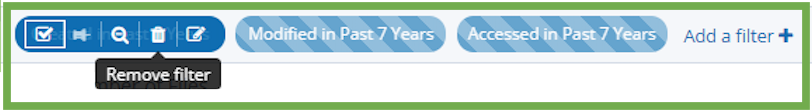

To delete the filter from the dashboard, use the cursor to hover over the filter.
Click Remove filter.
Act on Your Data
The metadata crawl of a file share logs valuable information in the Shinydocs Index that can be acted upon in a number of ways. Typical actions include:
